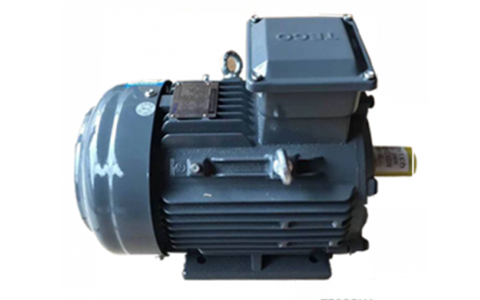

TECO GB3 Energy Efficient Motors TECHNICAL DATA:
●Kind of Motors：Squirrel - Cage Induction Motors ( SCIM ).
●Design Standards：IEC/GB
●Voltages：380V
●Frequency：50Hz
●Output Range：0.55kW ~400kW.
●R.PM.(Syn.)：3000~750 RPM.(2~8 Poles )
●Time Duty：Continuous.S1,S.F.: 1.0.
●Frame Nos.：80M~355C.
●Protection Enclosure：Totally Enclosed ( IP 55 ).
●Cooling Method：Self External Fan,Surface Cooling ( IC 411).
●Mounting：
AEEV3N:Horizontal Foot Mounted B3 ( IM 1001)
AEUV3N:Horizontal Flange Mounted B5 ( IM 3001)
AEEV3N:Horizontal Foot And Flange Mounted B35( IM 2001）
AEUV3N:Vertical Flange Mounted,Shaft Down V1 ( IM 3011）
TECO GB3 Energy Efficient Motors Application：
●Environment Conditions：
Place : Shadow，Non-Hazardous.
Ambient Temperature :-15 ~40℃
Humidity : Less Than 90%RH (Non-Condensation )
Altitude : Less Than 1,000 Meters .
●PowerSource Conditions：Voltage: +10%,Frequency : 5%，and 10% Max.of Combined Voltageand Frequency. But Frequency Variation Does Not Exceed 5% .
●Method of Starting：Full Voltage Direct On Line or Y -A Starting .
●Drive Method：BeltService，However,2 Pole 45 kW and Up ,4、6、8Pole F# 280 and Above，Direct-Coupling Service Only.
●Direction of Rotation：CW According to IEC Definition,Suitable For Bi - Directional Operation
